Description
| คุณสมบัติ | Value |
| Coil Voltage | 230 V ac |
| Number of Poles | 3 |
| Contact Current Rating | 9 A |
| Power Rating | 4 kW |
| Normal State Configuration | 3NO |
| Contact Voltage Rating | 690 V ac |
| Series | 100K |
| Range | 100 Series |
| Number Of Auxiliary Contacts | 1 |
| Terminal Type | Screw |
| Width | 44.9mm |
| Depth | 82.7mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +60°C |
| Length | 108.2mm |
100K Miniature Contactors
Allen-Bradley Bulletin 100-K miniature contactors are designed for commercial and light industrial applications where panel space is at a premium. These miniature devices, while 45 mm wide, are shallower and have less panel depth requirements than standard IEC contactors.The miniature contactors have been designed with flexibility in mind. They are available with AC or DC operating coils, several contact ratings. Optional 2- or 4-pole auxiliary contact blocks in a variety of auxiliary contact configurations are available separately.
Compact size
Full-voltage non-reversing and reversing contactors
Rated up to 690V
IP2X Finger Protection
Optional integrated surge suppressor
Compatible with Bulletin 193-K bimetallic overload relay
“Mirror contacts” to IEC 60947-4-1 throughout
Mechanically linked contacts to IEC 60947-5-1 on base unit
Dimensions (H)50x(W)45x(D)53mm
3 Pole plus 1 auxiliary contact
These contactors have mechanically linked performance between the main contacts and internal aux contacts, which allows status feedback if contact weld occurs. Mirror contact prevents any status condition if a NO pole welds.
Features and Benefits:
• Compact size, allowing broader application use
• Choice of full-voltage non-reversing and reversing contactors
• AC and DC have the same dimensions
• IP2X Finger Protection for improved safety
• Optional integrated surge suppressor
• Fully compatible with Bulletin 193-K bimetallic overload relay
• Mechanically linked contacts to IEC 60947-5-1 on base unit
• “Mirror contacts” to IEC 60947-4-1 throughout
Certifications:
CE Marked
cULus Listed (File No. E41850, Guide NLDX, NLDX7)
CCC
Suitable for use with IE3 Motors (IEC 60034-30)

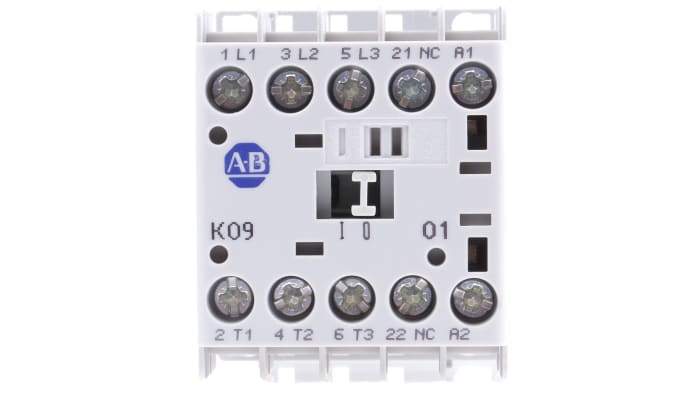

Allen Bradley 3-Pole Contactor, 9A, 4kW – 100-K09KF01
Optimise motor control with this high-performance contactor from Rockwell Automation’s Allen Bradley range. The device features a coil and an electromagnet that switch a motor on and off when a current passes through them. It has forked contacts that offer a reliable grip, so you can be sure of a stable connection. Thanks to a versatile modular design, you can configure and modify the contactor to suit the needs of your setup. As it has ample allowance for other devices like relays for increased motor protection, it’s useful in a range of industrial environments.
• Made of recyclable materials for sustainability• Functions with both alternating current (AC) and direct current (DC) voltage for versatility• Power rating of 4kW for high current load applications• Comes with a surge suppressor for increased electrical safety• Thermoplastic housing material for insulation and impact resistance
Standards and Certifications
• CCC (China Compulsory Certificate)• CE (Conformité Européenne)• cULus (Underwriters Laboratory U.S and Canada)
What’s the function of the mechanically-linked contacts on this contactor?
Mechanically-linked contacts ensure that normally-open (NO) and normally-closed (NC) contacts aren’t energised simultaneously to prevent arcing.
Allen Bradley MCS (Modular Control System) Contactors
A modular motor control system allowing users flexibility to design and construct an adaptable system. It has been designed to take in to account the demands and requirements of modern motors and their users; satisfying requirements up to 85AC3. A wide range of accessories are also available to cater for many diverse needs. The ease of assembly, installation and modification can bring many benefits not only those related to cost, but can reduce the number of parts which need to be held. The compact size of the component parts, bring other benefits including reduction in enclosure volume required, modern design and weight savings are also gained. By applying a modular design concept and an easy to fit ‘clip-in’ method, all add to the class leading features and benefits of the MCS system.
MCS features:
DIN Rail
Surface Mounting
