Description
| คุณสมบัติ | Value |
| Number of Poles | 6 |
| Maximum Current | 63A |
| IP Rating | IP66 |
| Power Rating | 22kW |
| Voltage Rating | 690V ac |
| Accepts Padlocks | Yes |
| Handle Colour | Black/Grey, Red/Yellow |
| Switch Rating | 15kA |
| Length | 80mm |
| Width | 54mm |
| Depth | 73mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +60°C |
| Terminal Type | Wire Lead |

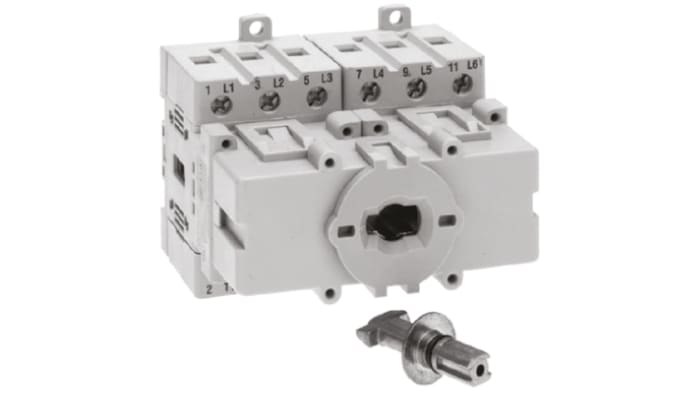

Switch Disconnectors (Base Mounting)
The switches fully conform to IEC204, VDE 0660 and IEC947 and are UL,CSA approved.
Manufactured from thermo-resistant and self-extinguishing materials (UL94-VØ) which are free from Cadmium, Halogen and Asbestos
Allen Bradley MCS Range
The 194E switch disconnector range forms part of the Modular Control System (MCS) 9mm grid system and similarly features compact design, modularity and extensive choice, all switch materials can be recycled. Universal terminal screws are fitted for ’Pozidriv’ or flat blade screwdriver. The switching category is AC23A.
