Description
| คุณสมบัติ | Value |
| Number of Poles | 3 |
| Maximum Current | 40A |
| Mounting Type | Panel Mount |
| IP Rating | IP66 |
| Power Rating | 18.5kW |
| Voltage Rating | 690V ac |
| Electrical Phase | 3 |
| Accepts Padlocks | Yes |
| Handle Colour | Black/Grey, Red/Yellow |
| Switch Rating | 20kA |
| Length | 108mm |
| Width | 54mm |
| Depth | 74mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +60°C |
| Terminal Type | Wire Lead |
Switch Disconnectors (Front Mounting)
These switches fully conform to IEC204, VDE 0660 and IEC947 and are UL,CSA approved. A full range of accessories is available.
Manufactured from thermo-resistant and self-extinguishing materials (UL94-VØ) which are free from Cadmium, Halogen and Asbestos
Note
Refer to product description AC23A rating for Technical Specification differential. 3 pole versions supplied complete with handle.

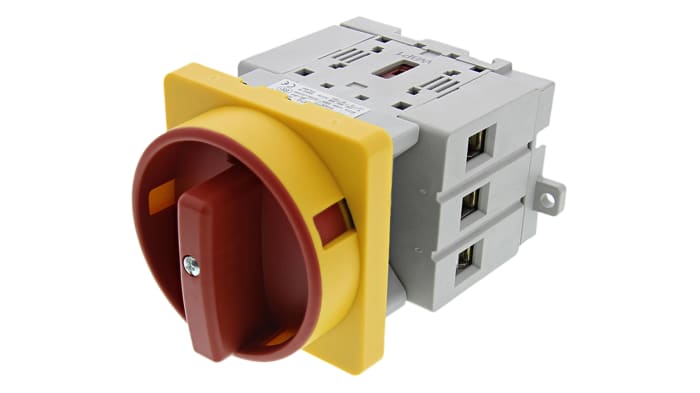

Allen Bradley Panel Mount Non-Fused Isolator Switch, 3 Pole, 18.5kW – 194E-E40-1753-6N
This panel-mount non-fused isolator from Rockwell Automation’s Allen Bradley range connects to your power distribution, load isolation and motor start/stop systems. Instead of a fuse, it uses the rotation of the rotary lever and locking ring to isolate the circuit. You can use this device while a circuit is still operating, so maintenance and checks can be carried out safely. Non-fused isolator switches are commonly used with circuit breakers and transmission lines, as well as transformers, industrial automation and control settings.
Features and Benefits
• IP65 (ingress protection) prevents interference caused by dust and low-pressure water jets
• Screw terminals on either side for easy installation
• Three spaces for padlocks to keep the switch secure
• IP20 finger-proof switch eliminates risk of electrocution
Standards and Certifications
• VDE (Verband der Elektrotechnik)
• IEC (International Electrotechnical Commission)
• UL (Underwriters’ Laboratories)
• CSA (Canadian Standards Association)
Is this switch safe to use in high-temperature environments?
The switch is made from thermo-resistant materials to protect it from damage. To enhance the product’s safety, the materials are self-extinguishing if a fire does break out. A maximum operating temperature of +60°C ensures it the switch remains in working order even when exposed to extreme heat.
Allen Bradley MCS Range
The 194E switch disconnector range forms part of the Modular Control System (MCS) 9mm grid system and similarly features compact design, modularity and extensive choice, all switch materials can be recycled. Universal terminal screws are fitted for ’Pozidriv’ or flat blade screwdriver. The switching category is AC23A.
