Description
| คุณสมบัติ | Value |
| Number of Poles | 3 |
| Maximum Current | 16A |
| IP Rating | IP66 |
| Power Rating | 7.5kW |
| Voltage Rating | 690V ac |
| Electrical Phase | 3 |
| Handle Colour | Black/Grey, Red/Yellow |
| Accepts Padlocks | Yes |
| Switch Rating | 20kA |
| Length | 120mm |
| Width | 70mm |
| Depth | 70mm |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -25°C |
| Terminal Type | Wire Lead |

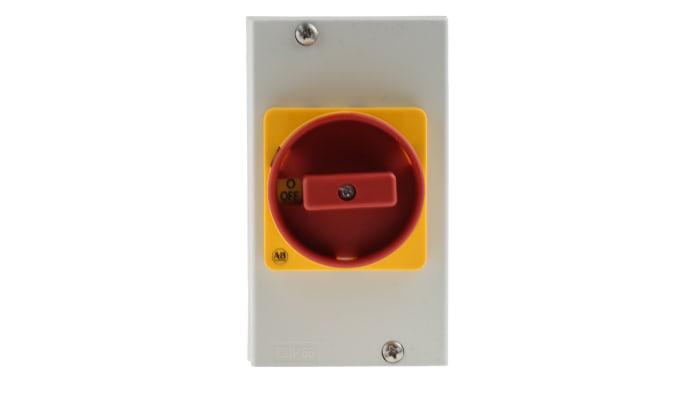

Red Handled Enclosed Switch Disconnector
Ingress protection to IP65
M25/M32 cable entry
Fourth pole or auxiliary contact (see stock number 443-0770 typically) can be fitted to switch body in enclosure
Allen Bradley Enclosed Non-Fused Isolator Switch, 3 Pole, 7.5kW – 194E-Y16M-1753-4N
This non-fused isolator switch from Rockwell Automation’s Allen Bradley range connects to your low-power machines to isolate power safely without using a fuse trip. When turned, the rotary lever locks the circuit in isolation. The switch can be used when a machine is still in use, meaning you can carry out maintenance checks safely. You’ll find devices like this commonly applied to circuit breakers, transmission lines and transformers with a maximum current of 16 amps.
Features and Benefits
• IP66 (ingress protection) offers high resistance to water
• Can be padlocked in the off position for extra security
• IP20 finger-safe switch for insulation from active electrical currents
• Snap-on modular accessories for quick assembly
Standards and Certifications
• IEC (International Electrotechnical Commission)
• UL (Underwriters’ Laboratories)
• CE (Conformité Européene)
• CSA (Canadian Standards Association)
How is this switch wired up?
The terminals support an M25 to M32 cable entry for small to medium-sized connectors. The third pole keeps the switch earthed to prevent electric shocks. In addition to the three-pole contact, an auxiliary contact can be added to the switch body in the enclosure to signal malfunctions.
