Description
| คุณสมบัติ | Value |
| Block Type | Contact Block |
| Contact Configuration | 1NC |
| Series | 800F |
| Voltage Rating | 600V |
| Terminal Type | Screw |
| Body/Fixing Collar Included | No |
Contact Blocks
Screw terminations
Durable hook & snap interface to latch
Colour-coded plungers for easy circuit identification
Bifurcation for superior contact wiping and optimal switching reliability
Latch and contact block combinations available.
Base mounted versions for use with enclosures.
CE Marked in compliance to relevant European Directive
Note
In the price table ‘SM N/O’ in the ‘Contact Configuration’ column denotes ‘self monitoring normally open’. ‘NCEB’ denotes ‘normally closed early break’.

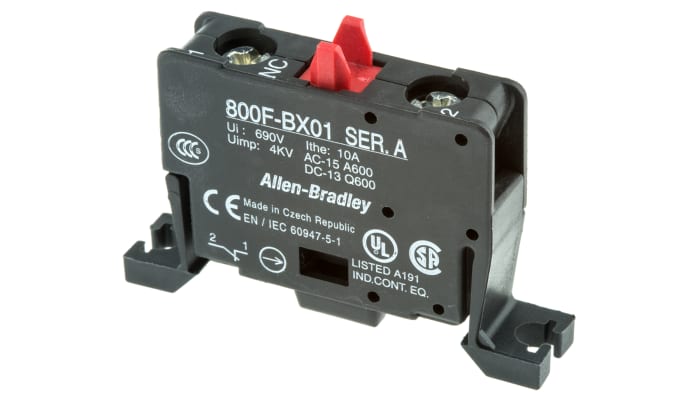

Image shows item with fitting latch attached, this is not supplied with item see stock nos. 511-8291 and 511-8308
800F Series Pushbuttons & Indicators
The 800F range of Push Buttons is designed and manufactured to meet demanding performance specifications. Using state-of-the art solid modelling techniques, each component built into 800F Push Buttons is optimized for durability and safe performance.,Designed to conform with the industry standard 22mm hole fixing requirements, the 800F range covers the following products.
Illuminated/non-illuminated push-buttons and mushroom operators
Pilot lights LED operated
Selector, toggle, multi-function and key selector switches (2 and 3 positions)
Custom laser engraving for pushbutton caps and diffusers
Single turn potentiometer assembly
Emergency stop push-buttons including the unique self monitoring contact block
Low front of panel profile
Selection of silicone boots are available
Plastic enclosures
Up to six circuits per operator
Metal operators offer ruggedness and durability
IP66 protection class
Meets CE/UL/CSA standards and CCC (Chinese standard) compliant
Finished with corrosion-resistant anodized plating
Single person panel installation
Easy to install operators provide significant time and cost savings
• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
