Description
| คุณสมบัติ | Value |
| Accessory Type | Cordset |
| For Use With | GuardShield™ Safety Light Curtains |

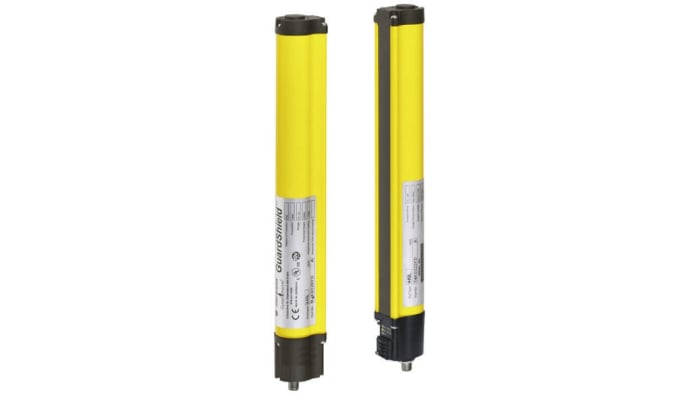

440L, Type 4, Finger Protection
Ensure sophisticated presence sensing for your machine safety application with the GuardShield 440L Finger Protection Safety Light Curtains and accessories by Allen Bradley Guardmaster.
14mm resolution (finger detection)
DIP switch selectable modes of operation located beneath a security door in the end caps offer features that include:
Fixed blanking (teachable)
Floating blanking (one or two beam)
Beam coding
start/restart interlock
External device monitoring (EDM)
Two safety solid state and one auxillary non-safety outputs
Easy maintenance with the Quick Disconnect cables (4 pin for the sender, 8 pin for the receiver)
These GuardShield Light Curtains are self-contained two-box Type 4 Electro Sensitive Protective equipment (ESPE). They have convenient DIP switch selectable Modes of Operation, located beneath a security door in the end caps, which offer advanced features such as:
• Fixed blanking (teachable)
• Floating blanking (one or two beam)
• Beam coding
• Start/restart interlock
• External device monitoring (EDM)
Features and Benefits:
• 14mm resolution (finger detection)
• Two safety solid state and one auxillary non-safety outputs
• Easy maintenance with the Quick Disconnect cables (4-pin for the sender, 8-pin for the receiver)
Installation and operation of this safety device must be in strict accordance with accompanying operating instructions
Applications:
• Robot cells
• Conveyors
• Presses
• Forming Operations
• Electronic Fences
• Workstations
Note: Installation and operation of this safety device must be in strict accordance with accompanying operating instructions.
When ordering both a sender and receiver are included. In addition, a sender cable and a receiver cable will be required. For suitable safety relays, see the “Minotaur” range of products (e.g 447-5587)
Standards: IEC/EN61496 parts 1 & 2, Type 4 ESPE and EN954-1 Cat 4, UL61496, UL1998
Approvals: TUV and CE marked; UL61496, UL1998
Note
When ordering both a sender and receiver are included. In addition, a sender cable and a receiver cable will be required. For suitable safety relays, see the “Minotaur” range of products (e.g 447-5587)
Approvals
TUV and CE marked; UL61496, UL1998
Standards
IEC/EN61496 parts 1 & 2, Type 4 ESPE and EN954-1 Cat 4, UL61496, UL1998
889D-F8AB-20 Cordset for GuardShield Safety Light Curtains
The 889D-F8AB-20 unit is an 8-pin DC Micro (M12) Straight Female Cordset, 20m (65.6ft) length which is designed for use with the 440L GuardShield Light Curtains by Allen Bradley Guardmaster. It is used for connection to the receiver. This product is a black unshielded PVC cable and the wire size is 24 AWG.
Assembly rating: 30V AC/36V DC 1.5 A.
Allen Bradley Cordsets are made to be highly dependable, versatile, safe, and rugged enough to suit a variety of industrial applications. They adhere to UL2238 cable assembly standards and the NFPA-79 electrical standard, which require rigorous quality and performance testing. These cordsets are expertly designed to offer smooth connectivity and decrease downtime.
Light Curtain
