Description
| คุณสมบัติ | Value |
| Number of Poles | 4P |
| Current Rating | 40A |
| Tripping Characteristics | Type C |
| Rated AC Voltage | 220 → 240 V, 380 → 415V |
| Rated DC Voltage | 24V |
| Range | Acti 9 |
| Series | iC60H |
| Breaking Capacity at Maximum Voltage Rating | 10 kA |
| Circuit Breaker Type | MCB |
| Mounting Style | DIN Rail Mount |
| Length | 117mm |
| Depth | 77mm |

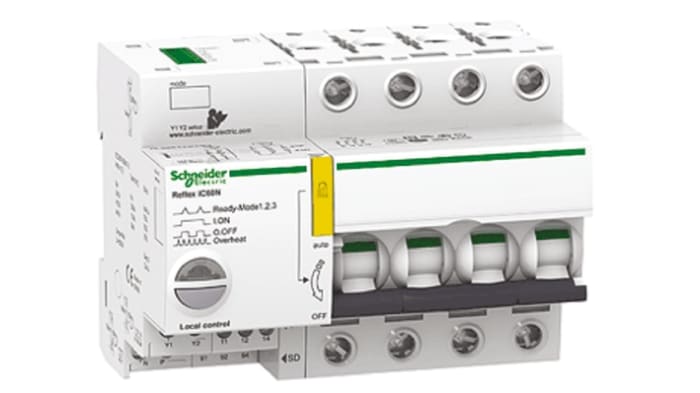

Acti9 Reflex iC60 MCBs
Reflex iC60 is integrated control circuit breaker which combines circuit protection against short-circuit currents and circuit protection against overload currents, it easily communicates with PLCs without the need for add-ons or retrofits.
It is especially dedicated to the load remote management of the applications which combine local control and centralised control with a number of switching operations.
Integrated remote control with three modes of operation
Integrated padlocking facility offering maximum safety for maintenance operations
Ti24 interface for direct link to PLC and Acti 9 Smartlink
Operating state indicator lamp
Pushbutton for manual control (opening/closing) and for choosing the operating modes
Merlin Gerin – MCBs
Miniature Circuit Breakers; Contact Position indicated by switch levers
