Description
| คุณสมบัติ | Value |
| Number of Poles | 1P |
| Current Rating | 16A |
| Tripping Characteristics | Type C |
| Rated AC Voltage | 230V |
| Model Number | IDD40T XA |
| Range | Acti 9 |
| Breaking Capacity at Maximum Voltage Rating | 7.5 kA |
| Circuit Breaker Type | Residential MCB |
| Mounting Style | DIN Rail Mount |
| Width | 36mm |
| Length | 91mm |
| Depth | 73mm |
| Reset Actuator Type | Toggle Switch |
| Tripping Mechanism | Thermal-Magnetic |

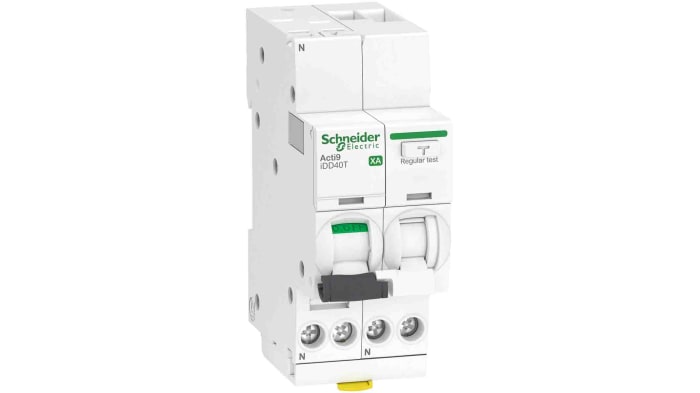

The Schneider Electric miniature circuit breaker combine circuit protection against short circuit currents and circuit protection against overload currents it also protects people against indirect contact with TN and IT neutral systems. The circuit breaker is fully compliant with standards IEC/EN 60898 and IEC/EN 60947-2. ACTi 9 is fully tested, approved and certified by national and international third parties.
Trip unit technology Thermal-magnetic
Poles description 1P + N
Number of protected poles 1
Neutral position Left
