Description
| คุณสมบัติ | Value |
| Number of Poles | 1P |
| Current Rating | 32A |
| Tripping Characteristics | Type B |
| Rated AC Voltage | 100 → 133 V, 12 → 60 V, 220 → 240V |
| Rated DC Voltage | 72 V, 12 → 48V |
| Series | iC60H |
| Range | Acti 9 |
| Breaking Capacity at Maximum Voltage Rating | 10 kA |
| Circuit Breaker Type | MCB |
| Mounting Style | DIN Rail Mount |
| Width | 18mm |
| Length | 85mm |
| Depth | 78.5mm |
| Reset Actuator Type | Rocker |
| Terminal Contact Type | Screw |
| Tripping Mechanism | Thermal-Magnetic |

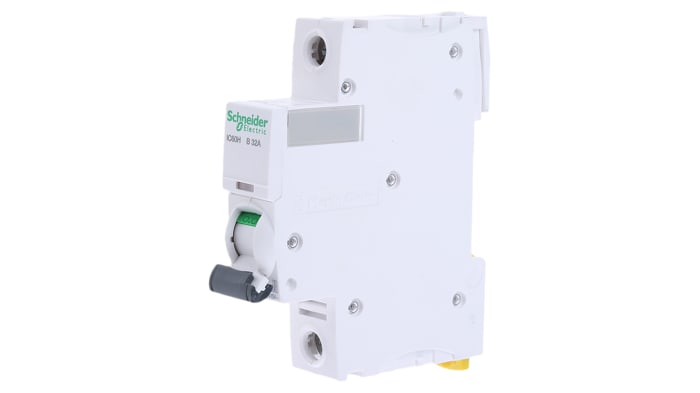

Schneider Electric Mini Circuit Breaker, 1 Pole, 32A – iC60H Series – A9F53132
This Schneider Electric miniature circuit breaker is designed to stop nuisance tripping and reduce downtime. It’s engineered to be an effective and reliable option for challenging industrial environments. Safety is assured as the unit efficiently deals with short circuits and overload currents. A compact profile helps to keep your electrical circuit simple and uncluttered while also making wiring easier. The device’s VisiTrip function allows for easy fault detection to reduce intervention time and prevent serious electrical problems from occurring.
Features & Benefits
• Robust connections to ensure electrical safety at all times
• Can be locked for an added level of protection
• Flexible and fast installation with a single clip that attaches to a DIN rail
• Space saving dimensions of 85 (height) x 18 (width) x 78.5 mm (depth)
• Suitable for use in polluted environments
Applications
• Industrial electrical installations
• Commercial buildings and offices
• Lighting and heating
What is a B-curve circuit breaker?
A B-curve circuit breaker like this one is used to protect circuits where no surge current is experienced, such as lighting and distribution boards. They’re well suited to residential setups and domestic appliances with a mainly resistive load.
Merlin Gerin – MCBs
Miniature Circuit Breakers; Contact Position indicated by switch levers
