Description
| คุณสมบัติ | Value |
| Number of Poles | 2 |
| Current Rating | 6A |
| Tripping Characteristics | Type B |
| Rated AC Voltage | 12 → 133 V, 220 → 240 V, 380 → 415 V, 440 V |
| Rated DC Voltage | 100 → 133V |
| Series | iC60H |
| Range | Acti 9 |
| Breaking Capacity at Maximum Voltage Rating | 10 kA |
| Circuit Breaker Type | MCB |
| Mounting Style | DIN Rail |
| Width | 36mm |
| Length | 85mm |
| Depth | 78.5mm |
| Tripping Mechanism | Thermal-Magnetic |
| Terminal Contact Type | Screw |
| Reset Actuator Type | Rocker |

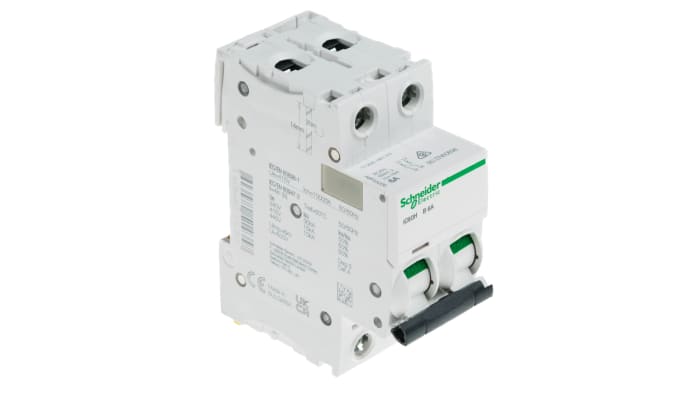

Schneider Electric Acti9 Miniature Circuit Breaker, 2 Pole, 6A – iC60H Series – A9F53206
Protect devices against short circuits and overload currents with this miniature circuit breaker from Schneider Electric. It’s a reliable choice for high inductive loads where switching surges are large. Enjoy the benefit of fast and flexible installation as well as a reduction in safety concerns during maintenance and operation. Its VisiSafe feature guarantees downstream circuits are always protected against overvoltage events. This device is engineered to adapt to the most challenging networks and provides precise operation, even in polluted environments.
Features & Benefits
• Red window on the front face to quickly diagnose fault tripping for reduced downtime
• Class-2 insulation for a high degree of safety for both qualified and unqualified personnel
• Robust connections that provide twice the standard tightening torque and won’t easily work loose
• Super immunisation and automatic reclosers increase continuity of service and enhance reliability
Applications
• Textile industry
• Shipbuilding
• Mining and minerals processing
• Marine and offshore industries
How easy is it to add a residual current device (RCD) to this circuit breaker?
It’s quick and easy to add a residual current device to this miniature circuit breaker. This is thanks to its screwless click-on connections that simply snap into place while maintaining a high degree of safety.
Merlin Gerin – MCBs
Miniature Circuit Breakers; Contact Position indicated by switch levers
