Description
| คุณสมบัติ | Value |
| Number of Poles | 2 |
| Current Rating | 1A |
| Tripping Characteristics | Type C |
| Rated AC Voltage | 12 → 133 V, 220 → 240 V, 380 → 415 V, 440 V |
| Rated DC Voltage | 100 → 133V |
| Range | Acti 9 |
| Series | iC60H |
| Breaking Capacity at Maximum Voltage Rating | 50 kA |
| Circuit Breaker Type | MCB |
| Mounting Style | DIN Rail |
| Width | 36mm |
| Length | 85mm |
| Depth | 78.5mm |
| Tripping Mechanism | Thermal-Magnetic |
| Terminal Contact Type | Screw |
| Reset Actuator Type | Rocker |

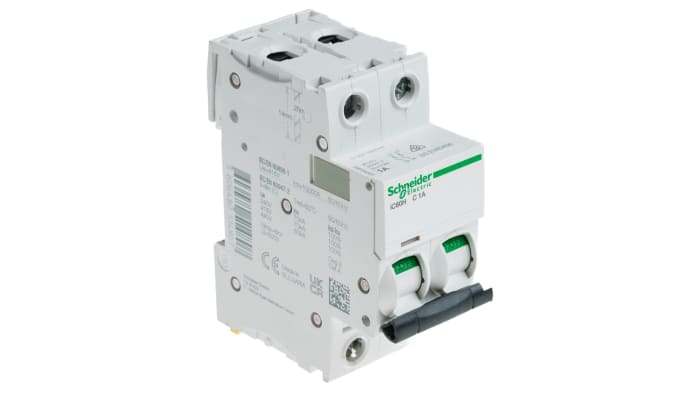

Schneider Electric Acti9 Miniature Circuit Breaker, 2 Pole, 1A – iC60H Series – A9F54201
Help prevent premature equipment ageing and overheating with this miniature circuit breaker from Schneider Electric. Its fast closing mechanism limits wear and reduces voltage drops to improve the service life of machinery. The innovative device includes a VisiTrip feature that lets you identify faults at a glance, significantly reducing diagnostic and repair time for improved workplace productivity. The flexible, open system of this miniature circuit breaker is able to communicate with building-management systems, so it’ll fit seamlessly into most switchboards.
Features & Benefits
• Screw terminals hold electrical wires securely from improved reliability
• Less wiring and reduced cable volumes for more efficient connection and safety verification
• Secure connections with quick, ergonomic and safe terminals shutters
• Large area for circuit identification, which allows for quick intervention and leaves no doubt about referenced circuits
Applications
• Commercial lighting systems
• Industrial security and safety systems
• Medical industry
What impact does this circuit breaker have on the environment?
This circuit breaker from Schneider Electric is made from fully recyclable and recoverable materials, so it has a light carbon footprint. It’s also energy-efficient and offers up to a 20% reduction in power usage.
Merlin Gerin – MCBs
Miniature Circuit Breakers; Contact Position indicated by switch levers
