Description
| คุณสมบัติ | Value |
| Current Rating | 6A |
| Tripping Characteristics | Type C |
| Rated AC Voltage | 230 V, 100 → 130 V, 12 → 60 V, 220 → 240V |
| Series | iC60N |
| Range | Acti 9 |
| Breaking Capacity at Maximum Voltage Rating | 6 kA |
| Circuit Breaker Type | MCB |
| Mounting Style | DIN Rail Mount |

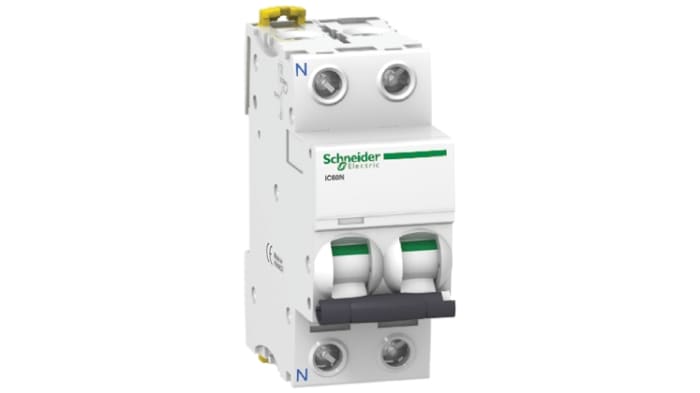

Acti9 iC60N MCBs 1+N Pole
iC60N curve B, C, D circuit breakers are multi-standard circuit breakers which combine circuit protection against short-circuit currents and circuit protection against overload currents
VisiSafe guarantees the downstream circuit is always safe regardless of overvoltage conditions, wear, or operator experience, even in the most demanding environments; The green strip indicates the safe position of contacts.
VisiTrip red window on the front face indicates fault tripping allowing fast diagnosis, resolution, and re-closing loads for easier building management and reduced downtime
Insulated terminals IP20
Large circuit labelling area
Double clip for dismounting with comb busbar in place
Merlin Gerin – MCBs
Miniature Circuit Breakers; Contact Position indicated by switch levers
