Description
| คุณสมบัติ | Value |
| Number of Poles | 2P |
| Current Rating | 3A |
| Tripping Characteristics | Type Z |
| Rated AC Voltage | 400V |
| Rated DC Voltage | 125V |
| Range | Acti 9 |
| Series | IC60L |
| Model Number | Acti 9 iC60 |
| Breaking Capacity at Maximum Voltage Rating | 20 kA, 15 kA |
| Circuit Breaker Type | MCB |
| Mounting Style | DIN Rail Mount |
| Width | 36mm |
| Length | 85mm |
| Depth | 78.5mm |
| Reset Actuator Type | Toggle Switch |
| Tripping Mechanism | Thermal-Magnetic |

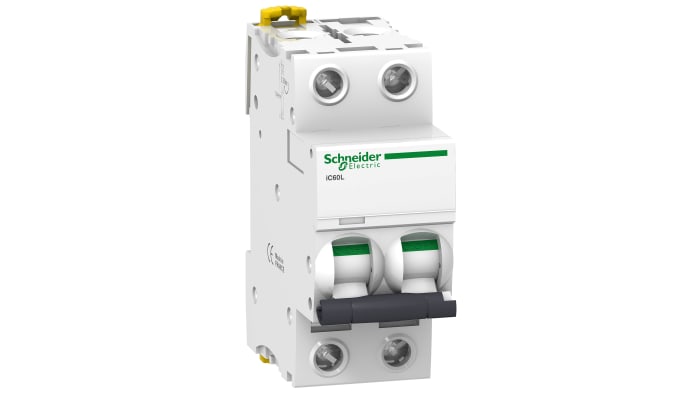

The Schneider Electric Acti 9 iC60L – miniature circuit breaker – with Thermal Magnetic Trip Unit Technology. Toggle-Control type & Trip indicator Local signalling. Earth Leakage Protection-Separate Block. Overvoltage category IV & it comes with various Environmental standard characteristics protections like Tropicalisation 2 conforming to IEC 60068-1, Pollution degree 3 conforming to EN 60947-2 &3 conforming to IEC 60947-2.
Mechanical durability-20000 cycles
Electrical durability-10000 cycles
