Description
| คุณสมบัติ | Value |
| Number of Poles | 4P |
| Current Rating | 10A |
| Tripping Characteristics | Type Z |
| Rated AC Voltage | 400V |
| Rated DC Voltage | 250V |
| Range | Acti 9 |
| Series | A9F9 |
| Model Number | iC60L |
| Breaking Capacity at Maximum Voltage Rating | 20 kA, 15 kA |
| Circuit Breaker Type | MCB |
| Mounting Style | DIN Rail Mount |
| Width | 72mm |
| Length | 85mm |
| Depth | 78.5mm |
| Tripping Mechanism | Thermal-Magnetic |
| Reset Actuator Type | Toggle Switch |

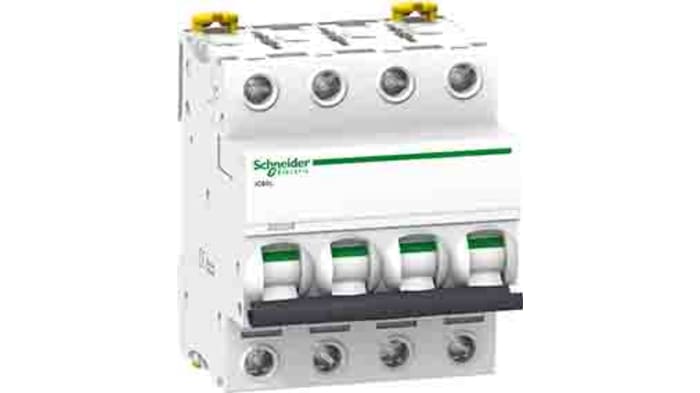

The Schneider Electric iC60L series AC/DC miniature circuit breaker having 4 Pole integrated with Thermal-magnetic tripping technology.
Green Premium product
Thermal-magnetic trip unit technology
DIN rail mounting support
