Description
| คุณสมบัติ | Value |
| Number of Poles | 2P |
| Current Rating | 80A |
| Tripping Characteristics | Type B |
| Range | Acti 9 |
| Series | A9N1 |
| Mounting Style | DIN Rail Mount |

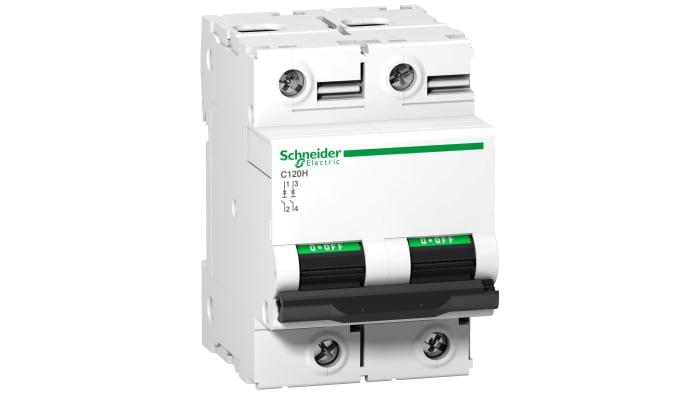

This Schneider Electric Acti9 C120H is a low voltage multistandard miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 80A rated current and B tripping curve. The rated short circuit breaking capacity goes up to 15000A at 230VAC to 400VAC conforming to EN/IEC 60898-1 standard and 15000A at 230VAC to 400VAC conforming to EN/IEC 60898-1 standard.
Wire stripping length 15 mm
Tightening torque 3.5 N.m
Earth-leakage protection Separate block
