Description
| คุณสมบัติ | Value |
| Number of Poles | 4P |
| Current Rating | 80A |
| Tripping Characteristics | Type B |
| Series | A9N1 |
| Range | Acti 9 |
| Mounting Style | DIN Rail Mount |

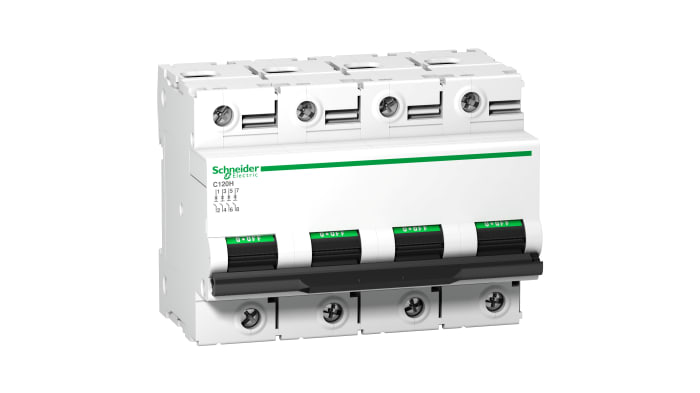

This Schneider Electric Acti9 C120H is a low voltage multistandard miniature circuit breaker (MCB). It is a 4P circuit breaker with 4 protected poles, 80A rated current and B tripping curve. The rated short circuit breaking capacity goes up to 15000A at 230VAC to 400VAC conforming to EN/IEC 60898-1 standard and 15000A at 230VAC to 400VAC conforming to EN/IEC 60898-1 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2.
Contact position indicator Yes
Control type toggle
Local signalling ON/OFF indication
Mounting mode clip-on
