Description
| คุณสมบัติ | Value |
| Number of Poles | 3P |
| Current Rating | 100A |
| Tripping Characteristics | Type C |
| Rated AC Voltage | 440V |
| Rated DC Voltage | ≤375V |
| Range | Acti 9 |
| Series | C120H |
| Breaking Capacity at Maximum Voltage Rating | 15 kA, 30 kA |
| Circuit Breaker Type | MCB |
| Mounting Style | DIN Rail Mount |
| Width | 73mm |
| Depth | 81mm |

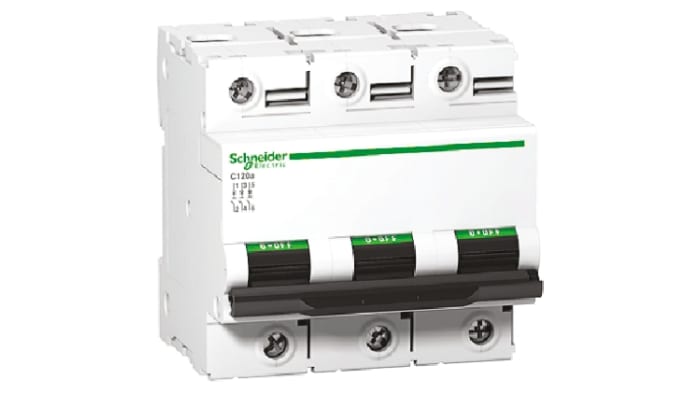

Acti9 C120H MCBs
Acti9 C120H curve B, C, D circuit breakers are multi-standard circuit breakers which combine circuit protection against short-circuit currents and circuit protection against overload currents
The presence of the green strip ensures that the contacts are open physically and allows work to be carried out safely on the downstream circuit
Fault tripping and indication by adding auxiliaries
Suitability for isolation in the industrial sector to IEC/EN 60947-2
Insulated terminals IP20
Location for 4 clip-on terminal markers
Merlin Gerin – MCBs
Miniature Circuit Breakers; Contact Position indicated by switch levers
