Description
| คุณสมบัติ | Value |
| Number of Poles | 2P |
| Current Rating | 80A |
| Tripping Characteristics | Type D |
| Series | A9N1 |
| Range | Acti 9 |
| Mounting Style | DIN Rail Mount |

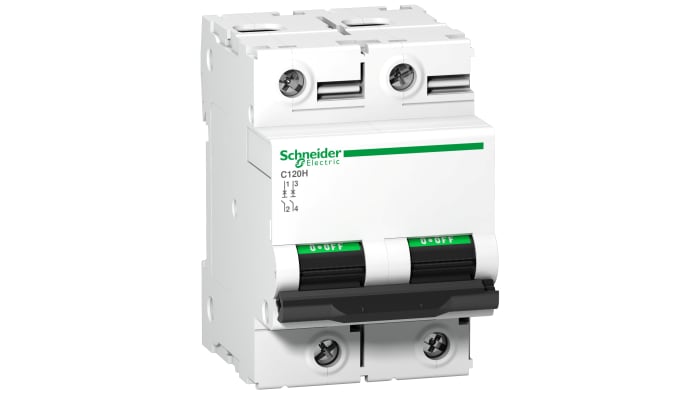

The Schneider Electric Miniature circuit-breaker has 2 pole configuration with 80 A rated current. The dimensions are (W) 54mm x (H) 81mm x (D) 73mm. The weight is 0.41kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 60°C. The storage temperature is -40°C to 70°C..The brand offers reliable and durable circuit-breakers to save equipment from surges. It has been trusted by industrial and commercial setups around the globe.
Control type toggle
local signalling ON/OFF indication
Mounting mode clip-on
Mounting support 35 mm symmetrical DIN rail
