Description
| คุณสมบัติ | Value |
| Number of Poles | 1P |
| Current Rating | 2A |
| Tripping Characteristics | Type C |
| Rated DC Voltage | 250V |
| Series | C60H-DC |
| Range | Acti 9 |
| Circuit Breaker Type | MCB |
| Mounting Style | DIN Rail Mount |
| Length | 81mm |
| Depth | 73mm |

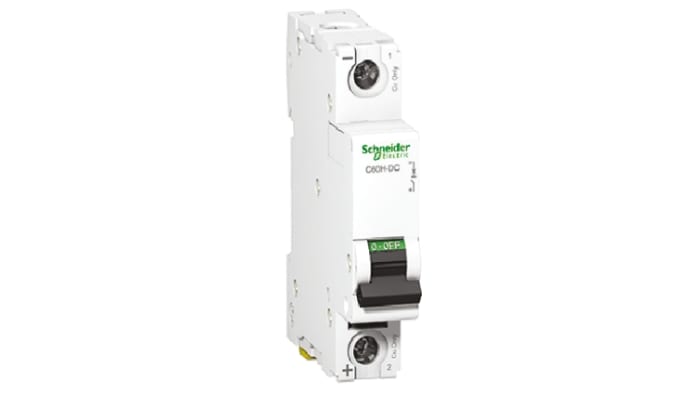

Acti9 C60H-DC MCBs
This range of supplementary protectors are used in direct current circuits (Industrial control and automations, transport, renewable energy).
They combine the following functions of circuit protection against short-circuit and overload currents, control and isolation.
Features & Benefits
Tripping curves: C curve – Overcurrent protection for any type of application
The green strip indicates that all the poles are open and allows work to be carried out on the downstream circuit in complete safety
Suitable for isolation as defined in IEC / EN 60947-2
Current limitation in the event of a fault: fast opening of the contacts prevents the loads from being damaged in the event of a short-circuit.
Merlin Gerin – MCBs
Miniature Circuit Breakers; Contact Position indicated by switch levers
