Description
| คุณสมบัติ | Value |
| Number of Poles | 2P |
| Current Rating | 25A |
| Tripping Characteristics | Type B |
| Rated DC Voltage | 800V |
| Range | Acti 9 |
| Series | C60-PV |
| Breaking Capacity at Maximum Voltage Rating | 3 kA |
| Circuit Breaker Type | MCB |
| Mounting Style | DIN Rail Mount |
| Width | 77mm |
| Length | 72mm |
| Depth | 133mm |

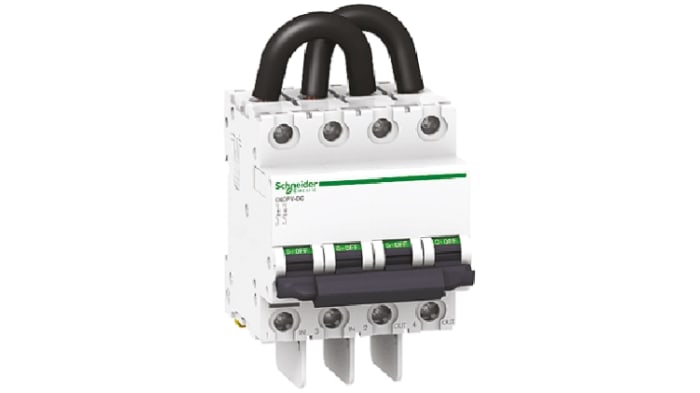

Acti9 C60PV MCBs
Circuit breaker to protect photovoltaic modules against fire in case of short-circuits
Insulation voltage Ui = 1000 V
Max. operating voltage Ue = 800 V DC
Ratings: From 1A to 25A
Merlin Gerin – MCBs
Miniature Circuit Breakers; Contact Position indicated by switch levers
