Description
| คุณสมบัติ | Value |
| Number of Poles | 1P |
| Current Rating | 1A |
| Tripping Characteristics | Type C |
| Rated AC Voltage | 230V |
| Series | Acti9iDT40N |
| Range | Acti 9 |
| Model Number | IDT40N |
| Breaking Capacity at Maximum Voltage Rating | 10 kA |
| Circuit Breaker Type | MCB |
| Mounting Style | DIN Rail Mount |
| Width | 78mm |
| Length | 18mm |
| Depth | 81mm |
| Terminal Contact Type | Screw |
| Tripping Mechanism | Thermal-Magnetic |
| Reset Actuator Type | Toggle Switch |

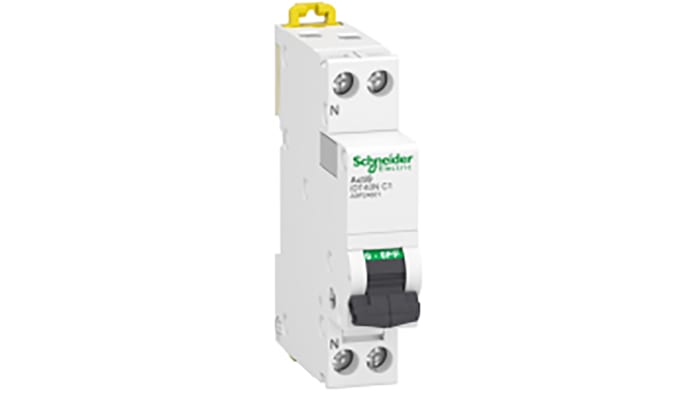

Acti9 DT40N MCBs
Introducing Schneider Electrics iC60H series of multi-standard circuit breakers which combine circuit protection against short circuit currents and circuit protection against overload currents alongside protecting users against indirect contact with TN and IT neutral systems.
Features & Benefits
B, C and D curve
Visisafe green strip indicates and guarantees the safe position of contacts
VisiTrip red window on the front face indicates fault tripping allowing fast diagnosis, resolution, and re-closing loads for easier building management and reduced downtime
Merlin Gerin – MCBs
Miniature Circuit Breakers; Contact Position indicated by switch levers
