Description
| คุณสมบัติ | Value |
| Number of Poles | 1P |
| Current Rating | 6A |
| Tripping Characteristics | Type C |
| Rated AC Voltage | 230V |
| Series | Acti9iDT40N |
| Model Number | IDT40N |
| Range | Acti 9 |
| Breaking Capacity at Maximum Voltage Rating | 10 kA |
| Circuit Breaker Type | MCB |
| Mounting Style | DIN Rail Mount |
| Width | 74mm |
| Length | 18mm |
| Depth | 85mm |
| Terminal Contact Type | Screw |
| Tripping Mechanism | Thermal-Magnetic |
| Reset Actuator Type | Toggle Switch |

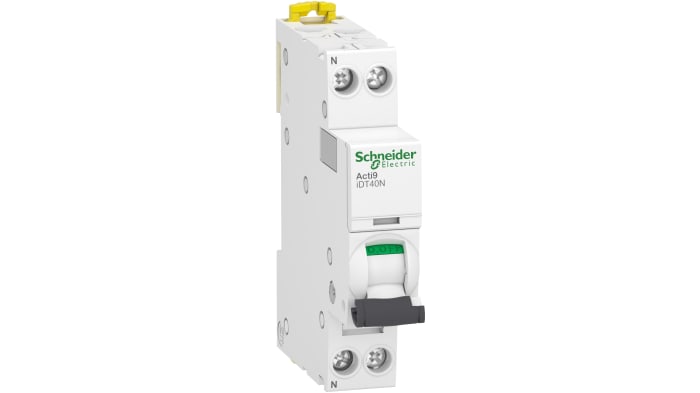

Schneider Electric Miniature Circuit Breaker, Type C, 10kA Breaking Capacity – iDT40N Series – A9P24606
Want to protect your equipment from both short-circuit and overload currents? Schneider Electric’s miniature circuit breaker (MCB) has the answer. It ensures the safety of personnel against indirect contact with TN (transformer neutral) and IT (unearthed transformer neutral) systems by cutting power when a fault occurs. Its compact size of 18 (W) x 74 (D) x 85mm (H) and DIN-rail mounting style make it easy to handle and install. A toggle switch actuator is clearly visible for manual switching between on and off positions.
Features & Benefits
• Type C tripping curve, which trips at a rate of 5 to 10 times the 6A rated current, provides ample protection to circuits
• VisiTrip red window indicates fault tripping, which helps to minimise downtime and promotes more time-efficient building management
Applications
• Commercial and industrial environments
• Small electric motors
• Fans
• Small transformers
What is Schneider Electric’s VisiSafe feature?
VisiSafe protects workers during maintenance on downstream currents by indicating the safe position of contacts.
What does 10kA breaking capacity mean?
A 10kA breaking capacity indicates the MCB can withstand 10,000 amps of current before tripping.
