Description
| คุณสมบัติ | Value |
| Coil Voltage | 24 V |
| Number of Poles | 4 |
| Contact Current Rating | 25 A |
| Power Rating | 1.6 W |
| Normal State Configuration | 4NC |
| Range | Acti 9 |

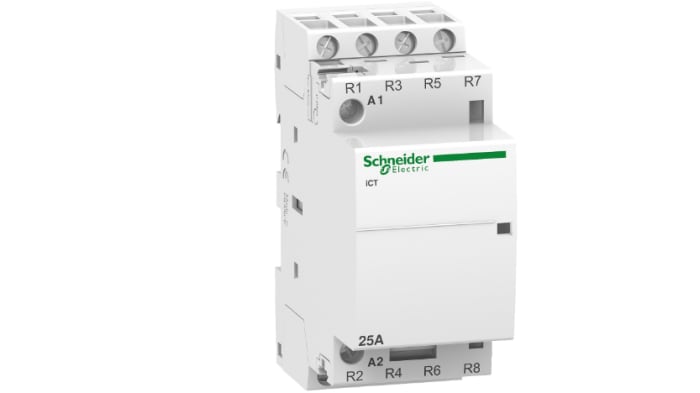

The Schneider Electric Acti9 iCT is a modular contactor. It is a 4P remote control device with 4 normally close contact. The rated current is 25A for AC-7a and 8.5A for AC-7b. The Ue rated operational voltage is 400VAC. The Uc control voltage is 24VAC.
The maximum switching operations is 100 per day
The Ui rated insulation voltage is 500VAC
The Uimp rated impulse withstand voltage is 4kV
Pollution degree is 2
It is DIN rail mountable
