Description
| คุณสมบัติ | Value |
| Coil Voltage | 230 V ac |
| Contact Voltage Rating | 230 → 240 V ac |
| Range | Acti 9 |
| Series | iACT |
| Terminal Type | Screw |
| Maximum Operating Temperature | +50°C |
| Minimum Operating Temperature | -5°C |

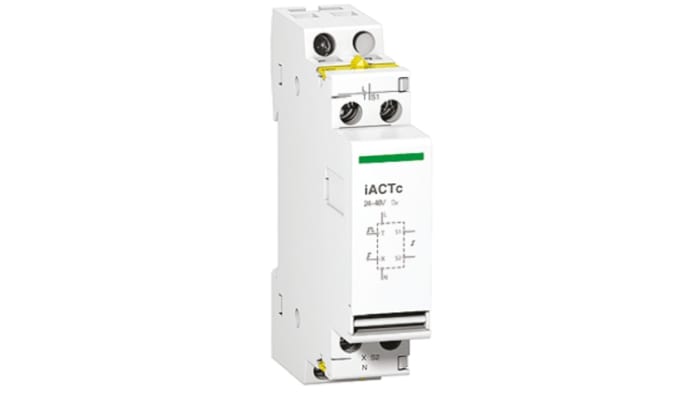

Acti9 iACT Auxiliary Contactors
Acti9 iACT Auxiliary Contactors are suitable for iCT contactors, these auxiliaries allow different operations
iACTs allows indication or control of the “open”or “closed” position of the contactor power contacts
iACTp is an interference suppressor which limits overvoltages on the control circuit
iACTc is used to control a contactor in impulse-type mode or to combine latched or impulse-type control orders
iACT24 allows control and indication of a 230 Vac contactor from the Acti 9 Smartlink or by a PLC, by 24 V DC signals
iATEt is used to time delay for iCT and iTL
