Description
| คุณสมบัติ | Value |
| Coil Voltage | 230 V ac |
| Number of Poles | 2 |
| Contact Current Rating | 40 A |
| Power Rating | 1.6 W |
| Normal State Configuration | 2NO |
| Series | iCT |
| Contact Voltage Rating | 250 V ac |
| Range | Acti 9 |
| Terminal Type | Screw |
| Maximum Operating Temperature | +60°C |
| Width | 85mm |
| Length | 36mm |
| Depth | 68mm |
| Minimum Operating Temperature | -5°C |

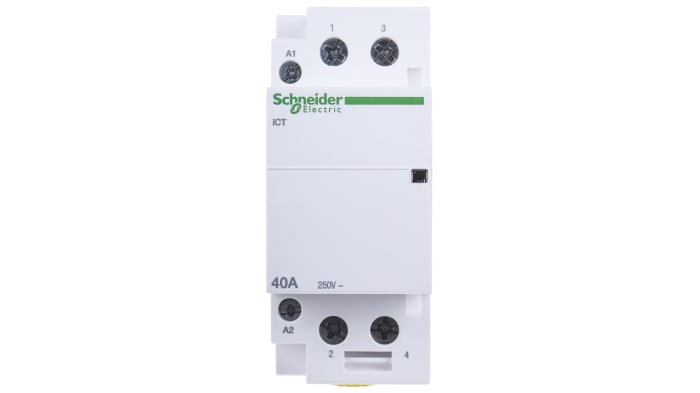

Schneider Electric A9C20842 Miniature Contactor
The A9C20842 is a miniature 2 pole contactor featuring a 230 V ac operating coil and an AC-3 full load current of 40 A.
Features & Benefits
• Wide operating temperature range of -5°C to +60°C makes it suitable for various environmental conditions
• Large circuit labelling area for quick visual identification of contacts
• Quiet operation, producing only 30dB (decibels) of noise
Applications
• High-powered lighting and control systems
• Heating and cooling applications
• Watering systems
How many times can this contactor be switched on or off in one day?
This high-performance contactor can switch an electrical current on and off up to 100 times a day. It has mechanical durability of 1,000,000 cycles, so you can rely on it for an extended service life.
