Description
| คุณสมบัติ | Value |
| Coil Voltage | 230 V ac |
| Number of Poles | 4 |
| Contact Current Rating | 25 A |
| Power Rating | 1.6 W |
| Normal State Configuration | 4NO |
| Contact Voltage Rating | 400 V ac |
| Series | iCT |
| Range | Acti 9 |
| Terminal Type | Screw |
| Width | 36mm |
| Depth | 60mm |
| Minimum Operating Temperature | -5°C |
| Length | 81mm |
| Maximum Operating Temperature | +60°C |

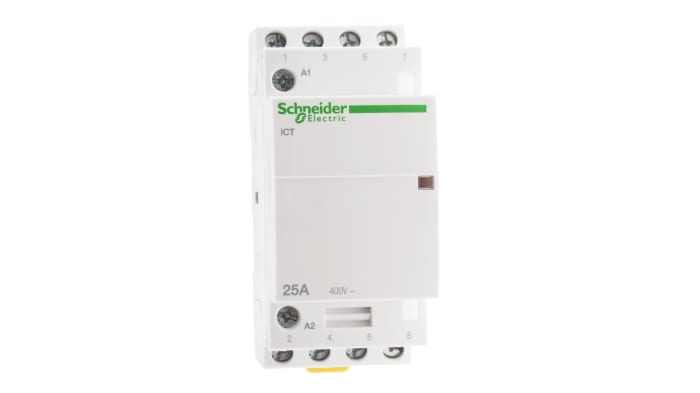

Schneider Electric 4-Pole Contactor, 230V AC Coil Voltage, 25A Current Rating – iCT Series – A9C24834
Use this multipurpose contactor from Schneider Electric for effective motor control and switching operations. It can be used to start both resistive and inductive loads, making it a versatile choice for industrial motors. Tough thermoplastic housing provides reliable impact resistance, as well as insulation to protect you from electric shocks. For added convenience, the unit has both manual and remote control options, and there’s an action status indicator so it’s easy to monitor when the device is in operation.
• Compact dimensions of 81 (L) x 36 (W) x 60mm (D) for efficient use of space
• Electrical durability count of 200,000 cycles for longevity
• Tightening torque of 0.8Nm for a secure, vibration-resistant connection
• IP40 (ingress protection) rating means it can withstand dust and objects larger than 1mm in size
Applications
• Industrial lighting systems
• Electric furnaces
• Heating equipment
Can I use this contactor in settings with demanding temperatures?
The contactor has a wide operating temperature range of -5°C to +60°C. This means you can rely on it to function optimally in both cold and hot environments.
