Description
| คุณสมบัติ | Value |
| Power Rating | 18.5 kW, 22 kW |
| Phase | 3 |
| Supply Voltage | 400 V ac |
| Current Rating | 34.1 A, 39.6 A |
| Output Frequency | 0.1 → 599Hz |
| For Use With | Asynchronous Motors, Synchronous Motors |
| Series | ATV930 |
| IP Rating | IP21 |
| Field Bus Communication Type | Profibus |
| STO | Yes |
| Drive Type | Variable Speed |
| Control Panel | Yes |
| Filter Included | Yes |
| Mounting Type | Wall Mount |
| Overall Depth | 545.9mm |
| Function | Motor Control |
| Overall Length | 211mm |
| Special Features | Earth Continuity, Ease of Installation, Maintenance of the Variable Speed Drive Fan (Kit Sizes 4 and 5), Strength, Tightness |
| Standards Met | EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 13849-1, IEC 60721-3, IEC 61000-3-12, IEC 61508, UL 508C |
| Overall Width | 235mm |

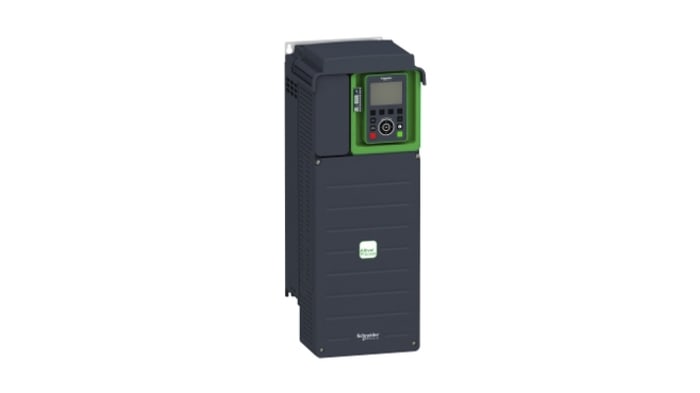

The Altiar Process is a variable speed drive for three-phase synchronous and asynchronous motors, specially designed for the following market segments. The Altivar Process 900 series is focused on maximum productivity with exceptional motor control and connectivity.
Oil & gas
Mining, minerals & metals
Food & beverage
Water & waste water
It offers special functionalities for the industrial process segments
Excellent motor performance on any type of motor
Total control of any kind of coupling in master/slave applications
Network services help ensure operation continuity even in case of connection breakdown
Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance
Variable Speed Drivers
Altivar Process ATV900
Three-Phase Supply Voltage :380 to 480 V 50/60 Hz
