Description
| คุณสมบัติ | Value |
| Coil Voltage | 5V dc |
| Contact Configuration | SPNO |
| Mounting Type | Flange Mount |
| Switching Current | 30A |
| Number of Poles | 1 |
| Latching | No |
| Terminal Type | Quick Connect |
| Coil Resistance | 25Ω |
| Coil Power | 2.8W |
| Maximum Switching Voltage AC | 300V |
| Length | 50.22mm |
| Height | 27.7mm |
| Isolation Coil To Contact | 2.5kV ac |
| Depth | 27.3mm |
| Maximum Switching Power AC | 2 hp |
| Application | Power |

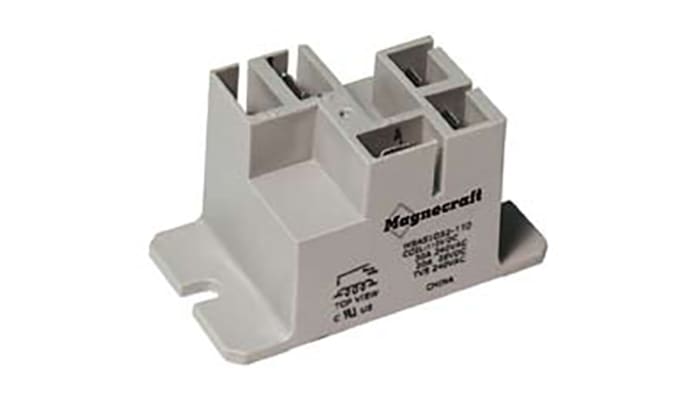

9A Series Power Relays
The 9A series power relays offer robust performance in applications such as HVAC, motor control, and alarm systems.
Standard Class F insulation
FLA/LRA and hp ratings
Small package size
Standard Quick Connect terminals
