Description
| คุณสมบัติ | Value |
| Coil Voltage | 48V dc |
| Contact Configuration | SPDT |
| Mounting Type | PCB Mount |
| Switching Current | 6A |
| Latching | No |
| Number of Poles | 1 |
| Terminal Type | Plug In |
| Coil Resistance | 10600Ω |
| Maximum Switching Voltage DC | 277V |
| Length | 28mm |
| Isolation Coil To Contact | 4kV ac |
| Height | 15mm |
| Standards Met | CE, CSA, EAC, EN/IEC, IEC, UL |
| Depth | 5mm |
| Maximum Switching Power DC | 50 W |
| Maximum Switching Power AC | 1.5 kVA |

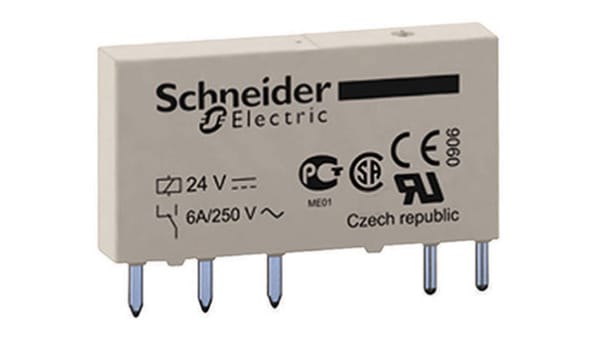

RSL Slim Interface Relays
RSL slim interface relays offer compact size in a modular design: their slim width (6 mm) saves valuable space when mounting on a DIN rail at the back of an enclosure.
RSL are available in two versions:
Pre-assembled range (a single catalog number for a standard relay mounted on a socket
Individual relays and sockets (provided separately according to the requirements of the application)
