Description
| คุณสมบัติ | Value |
| Coil Voltage | 24V dc |
| Contact Configuration | SPDT |
| Mounting Type | PCB, Socket Mount |
| Switching Current | 6A |
| Length | 5mm |
| Depth | 15mm |
| Series | RSL |
| Standards Met | CSA, EAC, EN/IEC, UL |
| Height | 28mm |

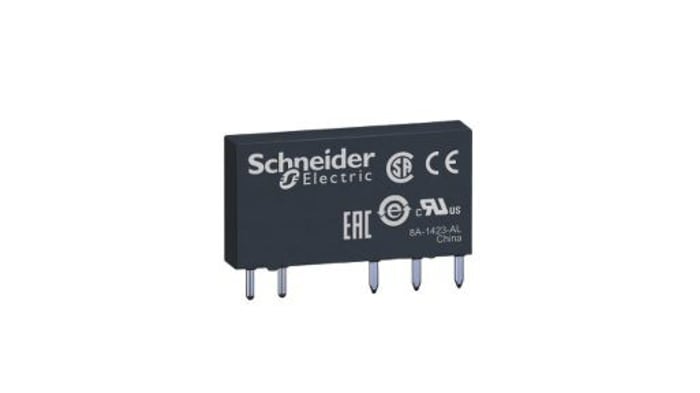

Schneider Electric Slim Interface Plug-In Relay, 24V DC, 10mA – RSL Series – RSL1AB4BD
Ensure the reliable transfer of digital signals with this interface relay from Schneider Electric. The plug-in device needs no installation tools and features a slim design for maximum packing efficiency in control cabinets. The relay’s exacting functional accuracy offers improved production levels, while above-average mechanical and electrical durability gives it extended service life. Its silver-alloy contacts conduct current swiftly and without interference. This unit withstands shock and vibration reliably, so it’s a trustworthy choice for demanding industrial applications.
Features & Benefits
• Compact dimensions of 28 (height) x 5 (width) x 18.5mm (depth)
• Lockable test buttons for quick and simple testing and diagnostics
• IP40 (ingress protection) rating indicates the enclosure offers protection from tools and wires larger than 1mm
• Supplied without a socket for customised assembly that meets the voltage demands of your application
Applications
• Textile industry
• Automation control panels
• Programmable logic controller interfaces
What is a hermetically sealed relay?
A hermetically sealed relay has a chamber that’s protected by a gas-tight coating to stop water vapour and dust particles from entering the workings. This makes it robust and ensures its good function in all operating conditions.
