Description
| คุณสมบัติ | Value |
| Coil Voltage | 110V dc |
| Contact Configuration | SPST-C/O |
| Mounting Type | Plug In |
| Latching | No |
| Number of Poles | 1 |
| Terminal Type | Plug In |
| Coil Resistance | 22800Ω |
| Coil Power | 530mW |
| Maximum Switching Voltage AC | 250V |
| Maximum Switching Voltage DC | 30V |
| Length | 13mm |
| Depth | 37.1mm |
| Height | 30.6mm |
| Isolation Coil To Contact | 5kV ac |
| Standards Met | CE, CSA, CULus, cURus File E173076 CCN NRNT2, IEC/EN 61810-1, NRNT7, NRNT8, UL |
| Maximum Switching Power DC | 300 W |
| Application | Industrial |
| Maximum Switching Power AC | 2.5 kVA |

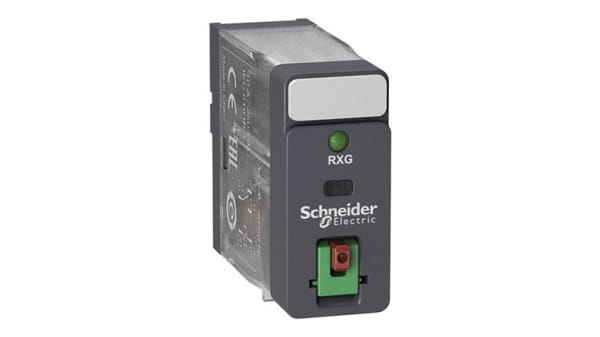

Zelio RXG Interface Relays
The Zelio RXG interface relay is widely used in PLC interface application for its reliable installation, easy
Test & maintenance, slim and spacing saving features.
The RXG interface relay range consists of-
10 A relays with 1CO contact and 5 A relays with 2CO contacts.
Sockets with separate contact terminals with screw connector connection, 35mm DIN Rail mounting and panel mounting.
Protection modules (diode, diode + LED, RC circuit or varistor+ LED) common to all RXG and RSB sockets.
A plastic maintaining clamp is supplied together for all RXG sockets.
Clip-in legends for all RXG and RSB sockets.
