Description
| คุณสมบัติ | Value |
| Coil Voltage | 24 V |
| Number of Poles | 3 |
| Contact Current Rating | 12 A |
| Power Rating | 3 W |
| Normal State Configuration | 3NO |
| Range | TeSys |

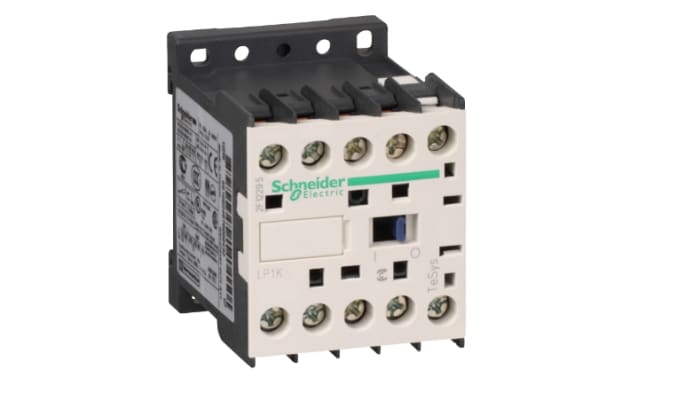

The Schneider Electric TeSys K contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3 (5.5kW@400V), and for non-inductive load control applications up to 20A/690V AC-1. It provides a 24V DC coil with transient suppressor module, 1NC built-in auxiliary contact, connection by screw clamp terminals.
It procures reliability and durability to standard applications For operating rates until 600 cycles/hour and environments until 50°C,
It is very compact (45mm width), DIN-rail mounting or screw fixing
