Description
| คุณสมบัติ | Value |
| Coil Voltage | 48 V |
| Number of Poles | 3 |
| Contact Current Rating | 12 A |
| Power Rating | 4 kW |
| Normal State Configuration | 3NO |
| Range | TeSys |

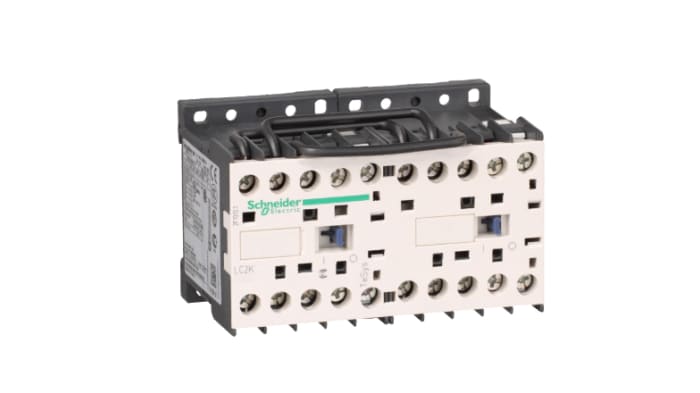

The Schneider Electric TeSys K reversing contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3 (5.5kW@400V). It provides 48V 50/60Hz AC coils, 2NC built-in auxiliary contacts, connection by screw clamp terminals.
It procures reliability and durability to standard applications for operating rates until 600 cycles/hour in AC-3 and environments until 50°C
