Description
| คุณสมบัติ | Value |
| Coil Voltage | 230 V |
| Number of Poles | 3 |
| Contact Current Rating | 185 A |
| Power Rating | 90 kW |
| Normal State Configuration | 3NO |
| Range | TeSys |

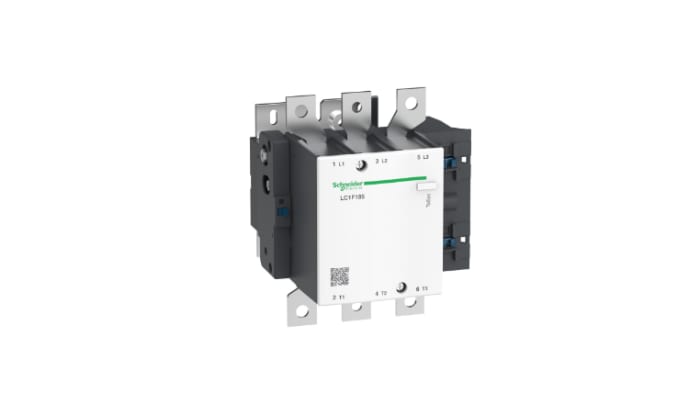

The Schneider Electric TeSys F contactor, 3 poles (3NO), 185A/690V AC-3, for motor applications up to 90kW@400V. It provides a low sealed consumption 230V 40-400Hz AC coil, bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability.
It includes a contactor LC1D with a control circuit 230V 50/60Hz To operate, it must be fitted with a thermal overload relay LRD32 (to be ordered separately)
