Description
| คุณสมบัติ | Value |
| Coil Voltage | 230 V |
| Number of Poles | 3 |
| Normal State Configuration | 3NO |
| Range | TeSys |

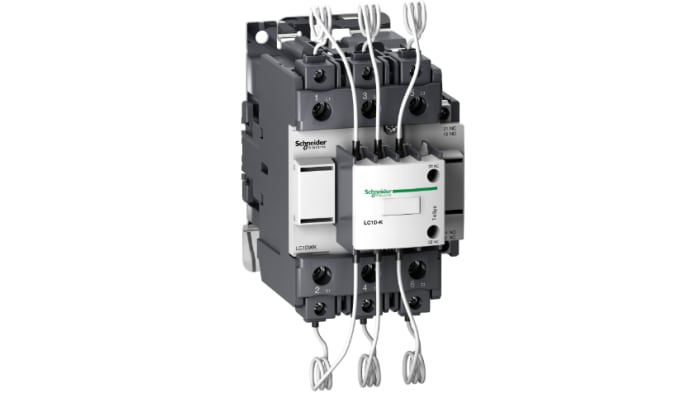

The Schneider Electric TeSys D contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 63kVAR@400V 50Hz (104kVAR@690V). It provides a 230V 50/60 Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation.
It procures high reliability and durability for operating rates until 240 cycles/hour and environments until 60°C
