Description
| คุณสมบัติ | Value |
| Coil Voltage | 110 V |
| Number of Poles | 3 |
| Contact Current Rating | 25 A |
| Power Rating | 5.5 kW |
| Normal State Configuration | 3NO |
| Range | TeSys |

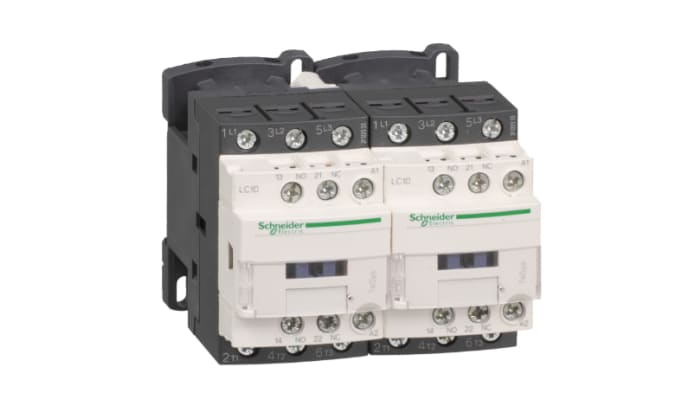

The Schneider Electric TeSys D reversing contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3 (11kW@400V). It provides 110V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals.With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
It procures high reliability and durability For operating rates until 3600 cycles/hour and environments until 60°C,
Compact (90mm width), DIN-rail mounting or screw fixing
