Description
| คุณสมบัติ | Value |
| Coil Voltage | 24 V |
| Number of Poles | 3 |
| Contact Current Rating | 6 A |
| Power Rating | 3 kW |
| Normal State Configuration | 3NO |
| Range | TeSys |

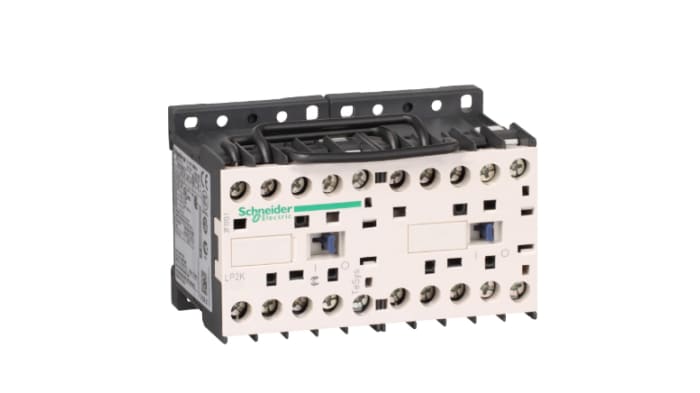

The Schneider Electric TeSys K reversing contactor, 3 poles (3NO), for motor control applications up to 6A/690V AC-3 (2.2kW@400V). It provides 24V DC coil with transient suppressor module, 2NC built-in auxiliary contacts, connection by screw clamp terminals. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
It procures reliability and durability to standard applications for operating rates until 600 cycles/hour in AC-3 and environments until 50°C
