Description
| คุณสมบัติ | Value |
| Coil Voltage | 240 V |
| Number of Poles | 3 |
| Contact Current Rating | 80 A |
| Power Rating | 22 kW |
| Normal State Configuration | 3NO |
| Range | TeSys |

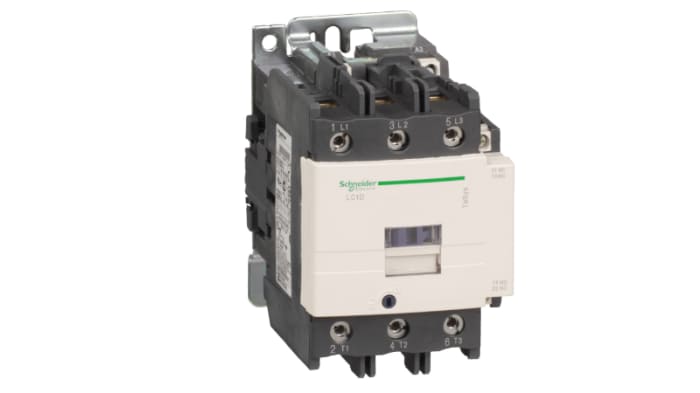

The Schneider Electric TeSys D contactor, 3 poles (3NO), for motor control applications up to 80A/1000V AC-3 (37kW@400V). It provides a 240V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by screw terminals, control connection by screw clamp terminals.
It procures high reliability and durability for operating rates until 3600 cycles/hour and environments until 60°C,
It is Compact (85mm width), DIN-rail mounting or screw fixing
