Description
| คุณสมบัติ | Value |
| Coil Voltage | 24 V |
| Number of Poles | 3 |
| Contact Current Rating | 9 A |
| Power Rating | 2.2 kW |
| Normal State Configuration | 3NO |
| Range | TeSys |

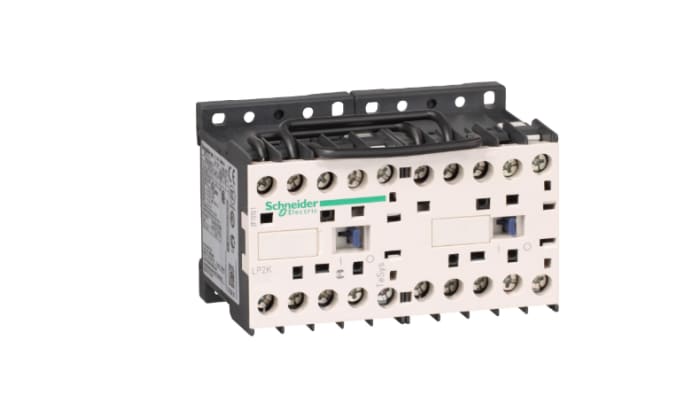

The Schneider Electric TeSys K reversing contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V). It provides 24V DC coil with transient suppressor module, 2NC built-in auxiliary contacts, connection by screw clamp terminals.. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking).
It procures reliability and durability to standard applications for operating rates until 600 cycles/hour in AC-3 and environments until 50°C,
