| คุณสมบัติ | Value |
| Coil Voltage | 380 V ac |
| Number of Poles | 3 |
| Contact Current Rating | 115 A |
| Power Rating | 65 kW |
| Normal State Configuration | 1NC + 1NO |
| Range | TeSys |
| Function | Reversing |

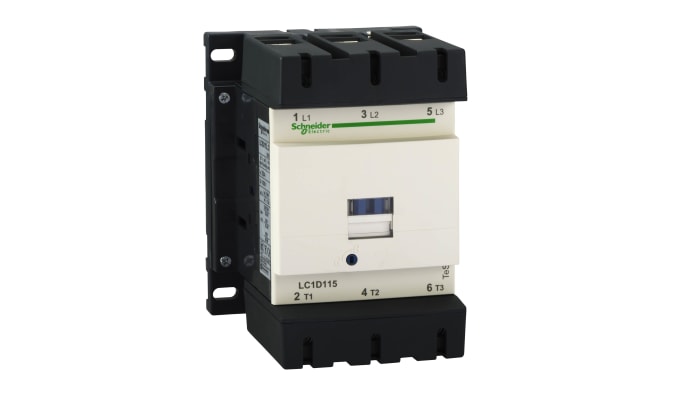

The Schneider Electric TeSys D series is a contactor which has a built in bidirectional peak limiting diode suppressor coil technology. It has control circuit voltage of 380 V ac. It is used in applications like resistive load and motor control. The type of connection for control circuit is through screw-clamp terminal.
IP degree of protection is IP20 front face conforming to IEC 60529
Ambient operating temperature is -40 to 60 °C
