Description
| คุณสมบัติ | Value |
| Coil Voltage | 110 V dc |
| Number of Poles | 3 |
| Contact Current Rating | 12 A |
| Power Rating | 7.5 kW |
| Normal State Configuration | 1NC + 1NO |
| Range | TeSys |
| Function | Reversing |

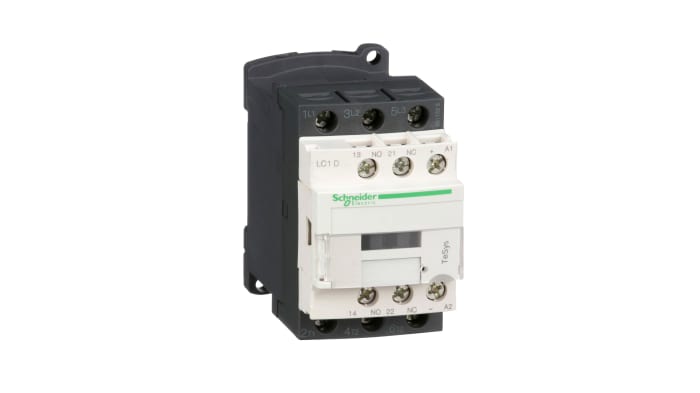

The Schneider Electric TeSys D series is a contactor which has an integral suppression device coil technology. It has control circuit voltage of 110 V dc. It is used in applications like resistive load and motor control. The type of connection for power and control circuit is through lugs-ring terminal.
IP degree of protection is IP20 front face conforming to IEC 60529
Ambient operating temperature is -40 to 60 °C
