Description
| คุณสมบัติ | Value |
| Coil Voltage | 24 V ac |
| Number of Poles | 3 |
| Contact Current Rating | 38 A |
| Power Rating | 18.5 kW |
| Normal State Configuration | 1NC + 1NO |
| Range | TeSys |
| Function | Reversing |

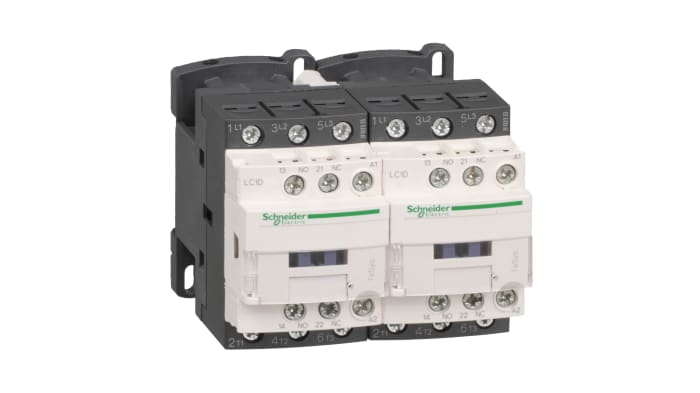

The Schneider Electric TeSys D series is a reversing contactor which has a without built in suppressor module coil technology and it is preassembled with reversing power busbar. It has control circuit voltage of 24 V ac. It is used in applications like resistive load and motor control. The type of connection for control circuit is through screw clamp terminal. It has a approval of CSA and UL certifications.
IP degree of protection is IP20 front face conforming to IEC 60529
