Description
| คุณสมบัติ | Value |
| Coil Voltage | 230 V ac |
| Number of Poles | 3 |
| Contact Current Rating | 500 A |
| Power Rating | 335 kW |
| Normal State Configuration | 3NO |
| Range | TeSys |
| Function | Reversing |

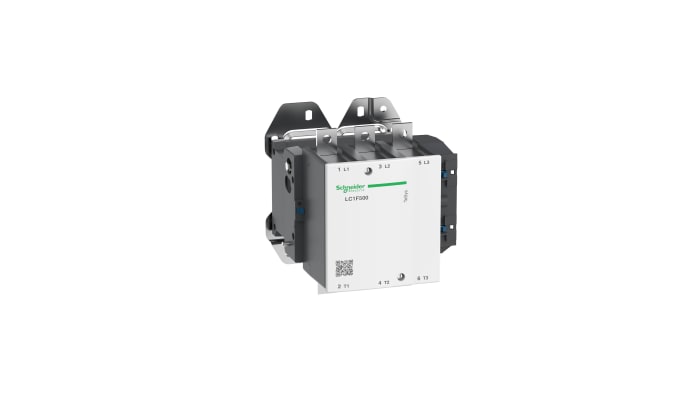

The Schneider Electric TeSys F series is a contactor which has a control circuit voltage of 230 V ac. It is used in applications like motor control and resistive load. The type of connection for control circuit is through screw clamp terminal.
IP degree of protection is IP2x front face conforming to IEC 60529
Ambient operating temperature is -40 to 60 °C
