Description
| คุณสมบัติ | Value |
| Coil Voltage | 100 V ac |
| Number of Poles | 3 |
| Contact Current Rating | 9 A |
| Power Rating | 5.5 kW |
| Normal State Configuration | 1NC + 1NO |
| Range | TeSys |
| Function | Reversing |

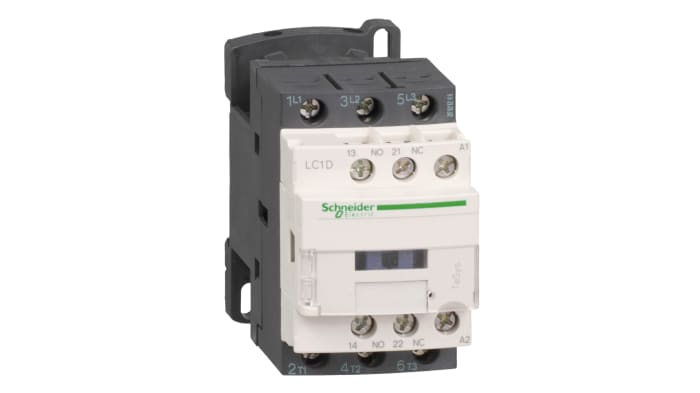

The Schneider Electric TeSys D series is a contactor which has a without built in suppressor module coil technology. The motor starter type is direct on line contactor. It has control circuit voltage of 100 V ac. It is used in applications like resistive load and motor control. The type of connection for power and control circuit is through screw-clamp terminal.
Signalling circuit frequency is 25 to 400 Hz
Ambient operating temperature is -40 to 60 °C
