Description
| คุณสมบัติ | Value |
| Coil Voltage | 240 V |
| Number of Poles | 4 |
| Contact Current Rating | 20 A |
| Normal State Configuration | 2NO + 2NC |
| Range | TeSys |

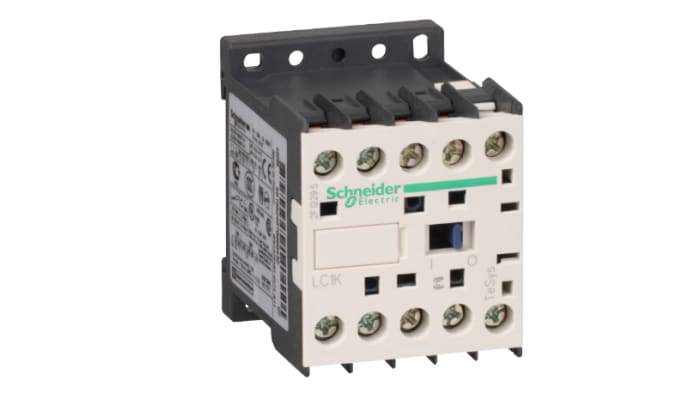

The Schneider Electric TeSys K contactor, 4 poles (2NO+2NC), for non-inductive load control applications up to 20A/690V AC-1. It provides a 230-240V 50/60Hz AC coil, without built-in auxiliary contact, connection by screw clamp terminals. Very compact (45mm width), DIN-rail mounting or screw fixing.
It procures reliability and durability to standard applications For operating rates until 600 cycles/hour and environments until 50°C,
