Description
| คุณสมบัติ | Value |
| Coil Voltage | 48 V ac |
| Number of Poles | 3 |
| Contact Current Rating | 10 A |
| Normal State Configuration | 5NO |
| Contact Voltage Rating | 690 V ac |
| Range | TeSys D |
| Series | CAD5 |
| Terminal Type | Screw |
| Width | 45mm |
| Depth | 86mm |
| Minimum Operating Temperature | -40°C |
| Length | 77mm |
| Maximum Operating Temperature | +70°C |

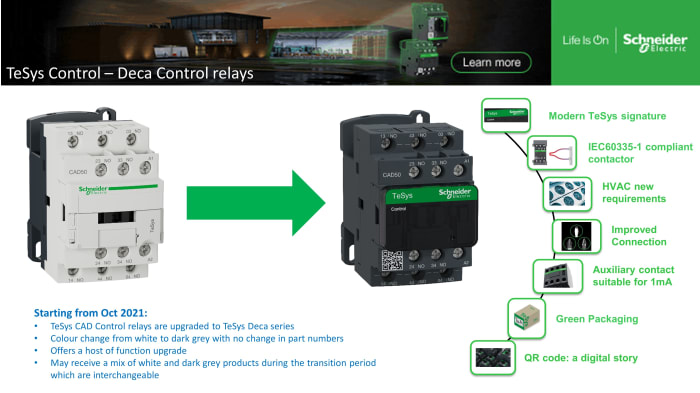

TeSys auxiliary contactors, series CAD
Featuring a new design, the TeSys D series of contactors are simple and fast to set up in all automation applications. Compliant with international standards these relays maintain a compact size of 45 to 55mm (40 to 65A). Assuring a permanent tightening quality even in the event of conductor creep, all versions are equipped with EverLink which is a new patented technology. Each relay is also as standard 10A with 5 poles, suitable for AC or DC control. A version is also available with low consumption and built in suppression.
What is EverLink technology?
Range of auxiliary contactors with ac or dc control circuit with screw connection or spring terminals.
Features and Benefits.
- Thermal contacts 10A with operation down to 17V 5mA
- AC and DC Control circuits available
- Low-consumption DC and silent
- Variety of auxiliary contacts, and timer modules
- 5 pole
- Resistance to vibration & temperature cycling
- Rated impulse withstands voltage 6 kV conforming to IEC 60947
Protection ratings & Safety features.
- BS 4794, EN 60947-5, IEC 60947-5-1, NF C 63-140 and VDE 0660 standards
- CSA and UL certification
- IP2x protection front face conforming to VDE 0106
- TH conforming to IEC 60068
Applications.
- Used to create motor starters for any type of application and integration in control systems. Other applications include:
- Switching contactor or relay coils
- Powering control and signalling equipment
- Simple control systems
- Industry, infrastructure, and building
CAD50E7 TeSys CAD D Control Relay AC Standard Coil.
- TeSys CAD Control relay.
- Control circuit applications.
- DC-13, AC-14, AC-15 Category.
- Ue] rated operational voltage <= 690 V AC 25…400 Hz.
- Control circuit type AC at 50/60 Hz.
- [Uc] control circuit voltage 48 V AC 50/60 Hz.
- Irms rated making capacity 140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1.
- Rail and Plate mounting.
- Screw clamp terminals.
- Minimum switching voltage 17 V.
- Minimum switching current 5 MA.
- Shock resistant to IEC 60068-2-27.
- Vibration resistant to IEC 60068-2-6.
- Protection to IP2x front face to VDE 0106.
Approvals
UL, CSA.
Standards
BS 4794, EN 60947-5, IEC 60947-5-1, NF C 63-140, VDE 0660.
