Description
| คุณสมบัติ | Value |
| Coil Voltage | 24 V dc |
| Contact Current Rating | 10 A |
| Normal State Configuration | 5NO |
| Contact Voltage Rating | 690 V dc |
| Range | TeSys D |
| Series | CAD5 |
| Terminal Type | Screw |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +70°C |

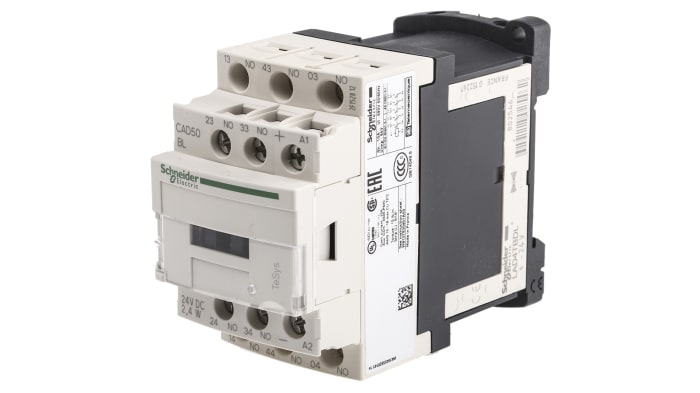

TeSys Control Relays
Featuring a new design, the TeSys D series of contactors are simple and fast to set up in all automation applications. Compliant with international standards these relays maintain a compact size of 45 to 55mm (40 to 65A). Assuring a permanent tightening quality even in the event of conductor creep, all versions are equipped with EverLink which is a new patented technology. Each relay is also as standard 10A with 5 poles, suitable for AC or DC control. A version is also available with low consumption and built in suppression.
What is EverLink technology?
A removable terminal block, contactors and circuit-breakers can be linked without and accessory, vertically. On the same rail wiring can be connected in less than a minute. Reducing heat loss at connection points and without creep this technology provides quality wiring, continuity of service, fast assembly and reduced dimensions.
Features and Benefits:
ac or dc operating coils
Built-in coil suppression on dc versions only
Switching category d2
Protection ratings & Safety features:
• BS 4794, EN 60947-5, IEC 60947-5-1, NF C 63-140 and VDE 0660 standards
• CSA and UL certification
• IP2x protection front face conforming to VDE 0106
• TH conforming to IEC 60068
Applications – Used to create motor starters for any type of application and integration in control systems. Other applications include:
• Switching contactor or relay coils
• Powering control and signalling equipment
• Simple control systems
• Industry, infrastructure, and building
Note
For typical auxiliary contact blocks see stock number 394-9970
