Description
| คุณสมบัติ | Value |
| Coil Voltage | 24 V dc |
| Number of Poles | 3 |
| Contact Current Rating | 115 A |
| Power Rating | 55 kW |
| Normal State Configuration | 3NO |
| Contact Voltage Rating | 1 kV ac |
| Range | TeSys D |
| Series | LC1D |
| Number Of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1NO + 1NC |
| Terminal Type | Screw |
| Width | 120mm |
| Depth | 132mm |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -40°C |
| Length | 158mm |

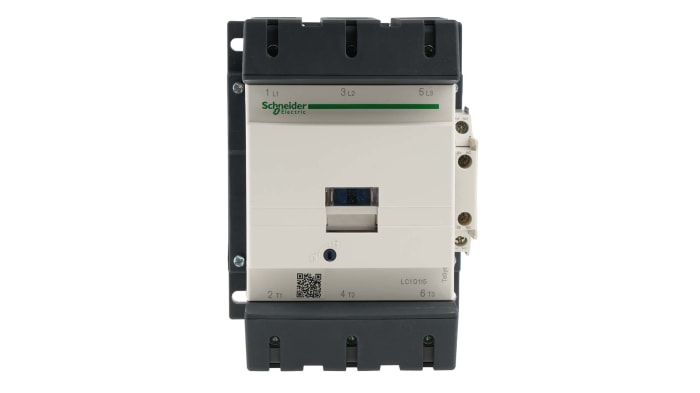

Schneider Electric LC1D115BD Contactor
The Schneider Electric LC1D115BD model is a 3 pole contactor featuring a 24 V dc operating coil, with an AC-3 full load current rating of 115 A.
• Sustainable option free from mercury and polyvinyl chloride (PVC)
• Mechanical lifespan of 8,000,000 cycles for durability and low maintenance
• Height of 158mm and width of 120mm means it’s compact enough to fit on crowded panels
• Wide operating temperature range of -5°C to +60°C for versatile use in demanding environments
Applications
• Manufacturing production lines
• HVAC (heating, ventilation and air conditioning) systems
• Factory automation
How do I mount this contactor?
Thanks to built-in supports, you can plate or rail mount this contactor on your panel or board to give you a good level of flexibility.
