Description
| คุณสมบัติ | Value |
| Coil Voltage | 24 V dc |
| Number of Poles | 3 |
| Contact Current Rating | 80 A |
| Power Rating | 45 kW |
| Normal State Configuration | 3NO |
| Contact Voltage Rating | 1 kV ac |
| Range | TeSys D |
| Series | LC1D |
| Number Of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1NO + 1NC |
| Terminal Type | Screw |
| Width | 85mm |
| Depth | 181mm |
| Minimum Operating Temperature | -40°C |
| Length | 127mm |
| Maximum Operating Temperature | +60°C |

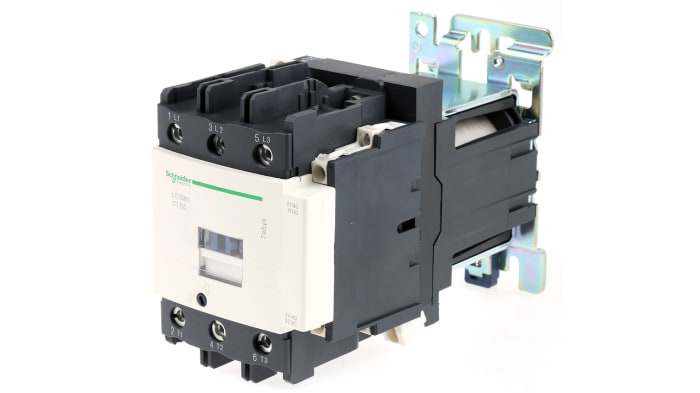

Schneider Electric LC1D80BD Contactor
The Schneider Electric LC1D80BD model is a 3 pole contactor featuring a 24 V dc operating coil, with an AC-3 full load current rating of 80 A
• Connection terminals designed to be out of reach of fingers for increased safety
• Wide operating temperature range of -25°C to +50°C for use in demanding industrial environments
• Secure screw terminals for easy installation
• Panel and DIN rail mounting options for versatility
• Mechanical service life of 30,000,000 cycles for long-term performance
Applications
• Squirrel cage motors
• Bucket elevators
• Air conditioning units
How do I maintain this contactor?
For optimal performance, you should regularly inspect this contactor’s terminals and wipe off any dust or oil. It’s also important to check for loose screws and tighten them to prevent sparks that could cause overheating.
