Description
| คุณสมบัติ | Value |
| Coil Voltage | 24 V ac |
| Number of Poles | 4 |
| Contact Current Rating | 80 A |
| Normal State Configuration | 4NO |
| Contact Voltage Rating | 690 V ac |
| Series | LC1D |
| Range | TeSys D |
| Number Of Auxiliary Contacts | 2 |
| Terminal Type | Screw |
| Width | 70mm |
| Depth | 120mm |
| Minimum Operating Temperature | -5°C |
| Length | 122mm |
| Maximum Operating Temperature | +60°C |

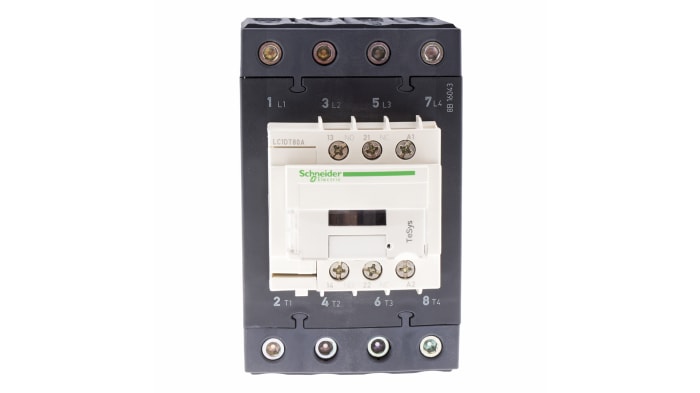

Four-pole Everlink switches
TeSys contactors fitted with Everlink power terminals, with hexagon socket-head screw.
Allows for a single piece starter assembly with an Everlink breaker (vertical or side by side assembly).
